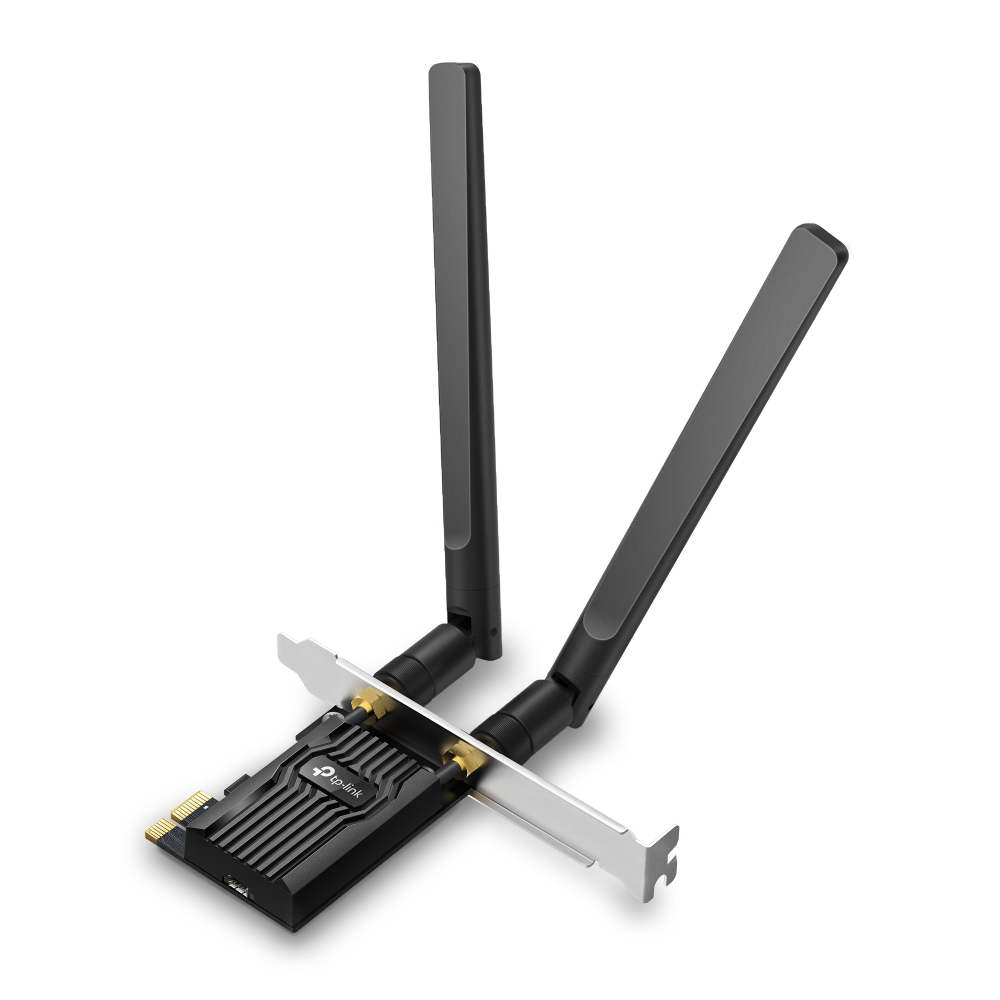

AX900 Dual Band Wi-Fi 6 Bluetooth 5.3 PCI Express Adapter

TX10E

AX900 Wi-Fi 6 Bluetooth PCIe Adapter

Arm Your PC with Next-Gen Wi-Fi Technology

Enhanced Reliability and Security

Unrivaled Dual-Band Speed: 600 Mbps + 287 Mbps †

Wider Signal Coverage with High Gain Antennas â–³

Low-Latency Gaming: OFDMA and MU-MIMO supported *

Cutting-Edge Bluetooth 5.3*

---

Highlights

Arm Your PC with Wi-Fi 6 Technology – Bluetooth 5.3

Improved Security — WPA3

Latest security enhancements provide better protection for personal password safety. **

Ultra-Low Latency

OFDMA + MU-MIMO ensure a more efficient Wi-Fi connection, reducing latency for faster speeds. *

Superior Wi-Fi Reception

Equipped with 1024-QAM and MU-MIMO for faster and clearer Wi-Fi reception. *

---

TP-Link AX900 Wi-Fi 6 Bluetooth PCIe Adapter

Bluetooth 5.3 improves reliability and security, ensuring robust connections with controllers, headphones, keyboards, etc. ***

Wi-Fi 6 guarantees extreme speeds, ultra-low latency, and uninterrupted connections, unlocking the full potential of Wi-Fi 6 routers. †

---

Wireless Specifications

Wireless Standards

• IEEE 802.11a/n/ac/ax (5 GHz)

• IEEE 802.11b/g/n/ax (2.4 GHz)

Signal Rate

5 GHz

• 11ax: up to 600 Mbps (dynamic)

• 11ac: up to 433 Mbps (dynamic)

• 11n: up to 150 Mbps (dynamic)

• 11a: up to 54 Mbps

2.4 GHz

• 11ax: up to 287 Mbps (dynamic)

• 11n: up to 200 Mbps (dynamic)

• 11g: up to 54 Mbps

• 11b: up to 11 Mbps

Reception Sensitivity

5 GHz

• 11a 6M: −94 dBm

• 11ax HE80 MCS11: −59 dBm

• 11ax HE80 MCS0: −87 dBm

2.4 GHz

• 11g 6M: −95 dBm

• 11ax HE40 MCS11: −65 dBm

• 11ax HE40 MCS0: −93 dBm

---

WLAN Features

Transmit Power

• 5 GHz: 28 dBm (FCC) / 23 dBm (CE) (EIRP)

• 2.4 GHz: 24 dBm (FCC) / 20 dBm (CE) (EIRP)

Wireless Modes

• Client mode, Hotspot mode

Interface

• PCI Express x1 / x4 / x8 / x16

Wireless Security

• WEP, WPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK

Modulation Technology

• DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024-QAM

---

Bluetooth Features

• Standards and Protocols: Bluetooth 5.3 / 5.2 / 5.0 / 4.2 / 4.0

• Interface: F_USB 2.0

• Antennas: Two High Gain Dual-Band Antennas

---

Hardware

Dimensions

• 120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)

---

Package Contents

• AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E

• Two High Gain Dual-Band Antennas

• Bluetooth Header Cable

• Quick Installation Guide

• Resource CD

---

System Requirements

• Windows 10 / 11 (64-bit) §

---

Environment

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 90% non-condensing

---

Certifications: FCC, CE, RoHS
