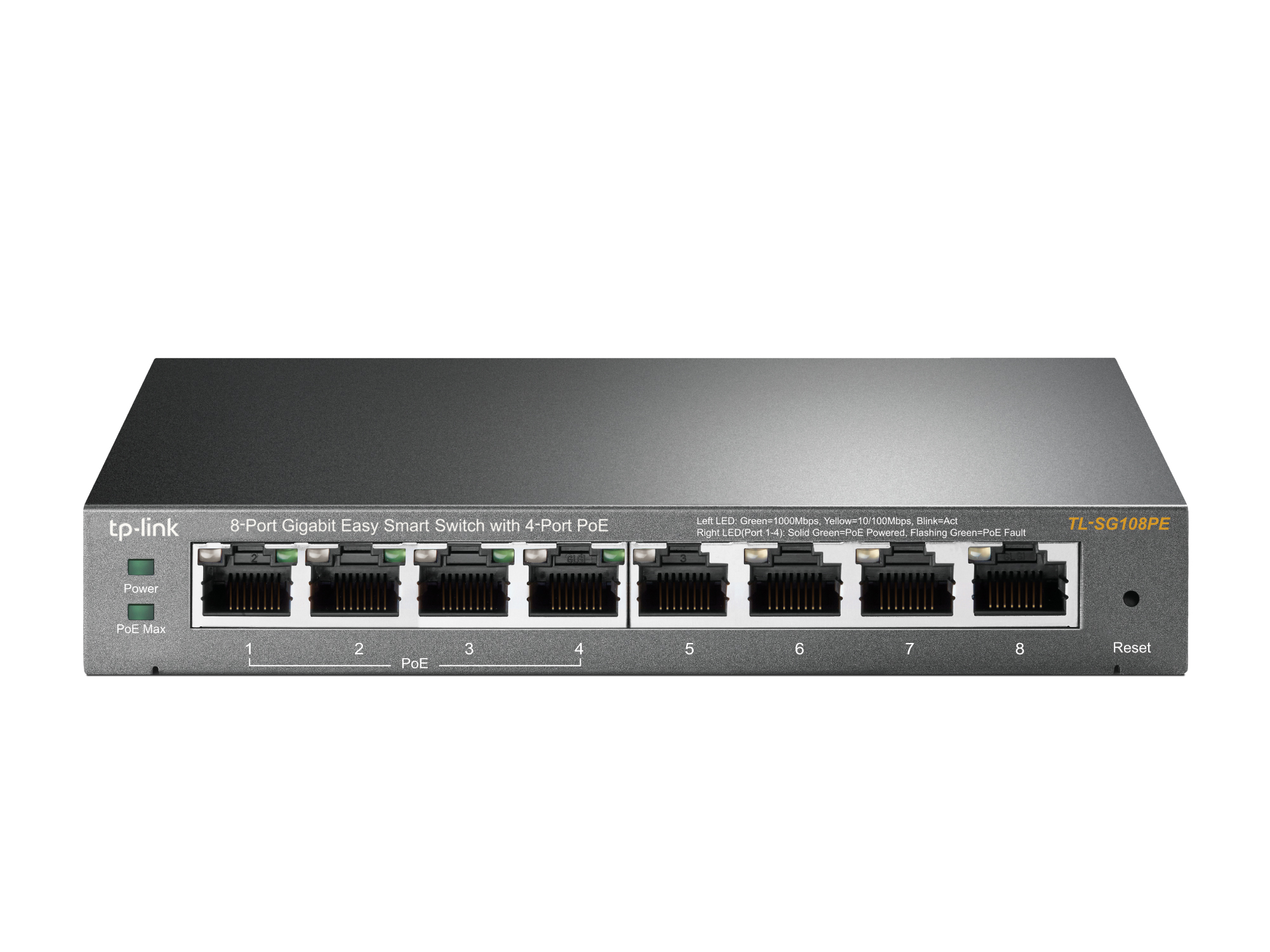

Easy Smart Switch 8 Porte Gigabit con 4 Porte PoE
- 8 Porte Gigabit RJ-45
- Tecnologia PoE per trasferimento di dati e alimentazione tramite lo stesso cavo
- Supporta standard PoE 802.3af con potenza complessiva porte fino a 55W e fino a 15.4W per porta
- Gestione semplificate di VLAN, Link Aggregation e Port Monitoring
- Setup di rete semplice e intuitivo
- Easy Management Utility per la gestione dello switch
-
CARATTERISTICHE HARDWARE |
Standard e protocolli |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interfaccia |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
Numero ventole |
Fanless |
Alimentazione |
External Power Adapter(Output: 48VDC / 1.25A) |
Consumo energetico |
Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz) |
Porte PoE+ |
|
Porte PoE |
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W |
Dimensioni ( L x P x A ) |
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max Power Consumption |
5.15W (220V/50Hz with no PD connected)
65.18W (220V/50Hz with 55W PD connected) |
Max Heat Dissipation |
17.57 BTU/h (with no PD connected)
222.39 BTU/h (with 55W PD connected) |
PRESTAZIONI |
Capacità di switching |
16Gbps |
Packet Forwarding Rate |
11.9Mpps |
Tabella ARP |
4K |
Buffer (pacchetti) |
1.5Mb |
Jumbo frame |
15KB |
CARATTERISTICHE SOFTWARE |
QoS (Quality of Service) |
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
Funzionalità L2 |
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
Gestione |
Web-based GUI
Easy Smart Configuration Utility |
Metodo di trasmissione |
Store-And-Forward |
ALTRO |
Certificazione |
FCC, CE, RoHS |
Contenuto della confezione |
TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet |
Requisiti di sistema |
Microsoft® Windows® for running Utility |
Ambiente |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing |
