MA30E

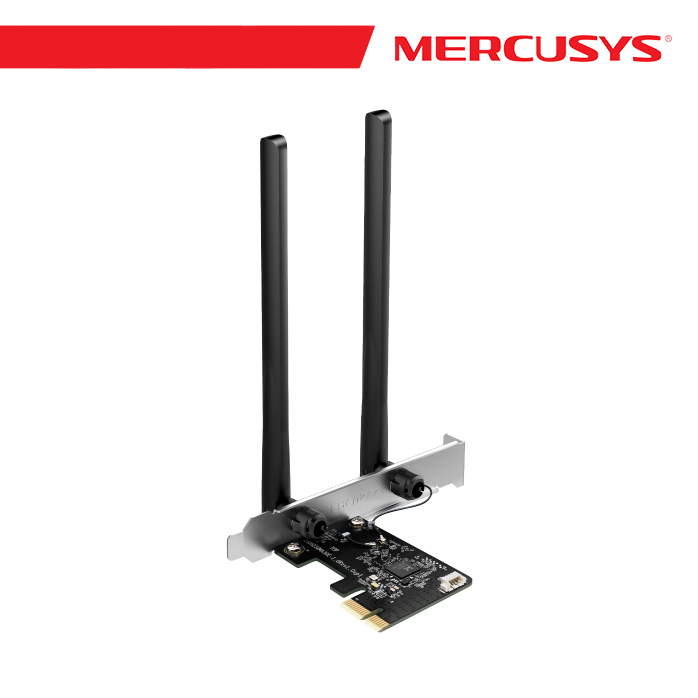

AC1200 Wi-Fi Bluetooth PCIe Adapter
Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)1
Wider Signal Coverage — Two high-performance antennas

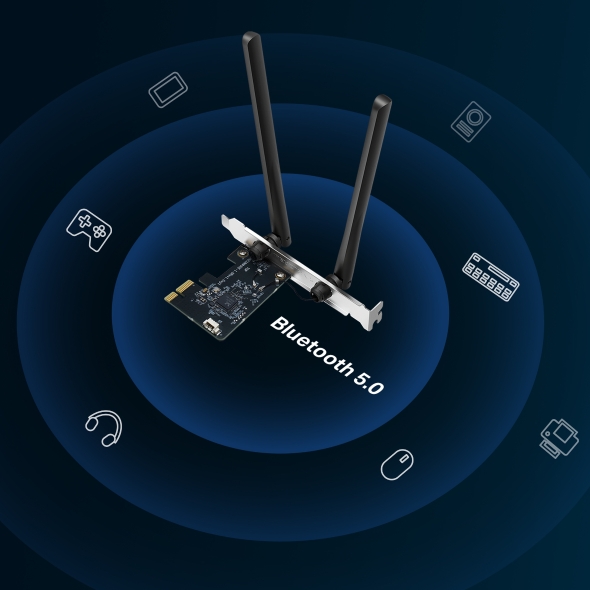

Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage2

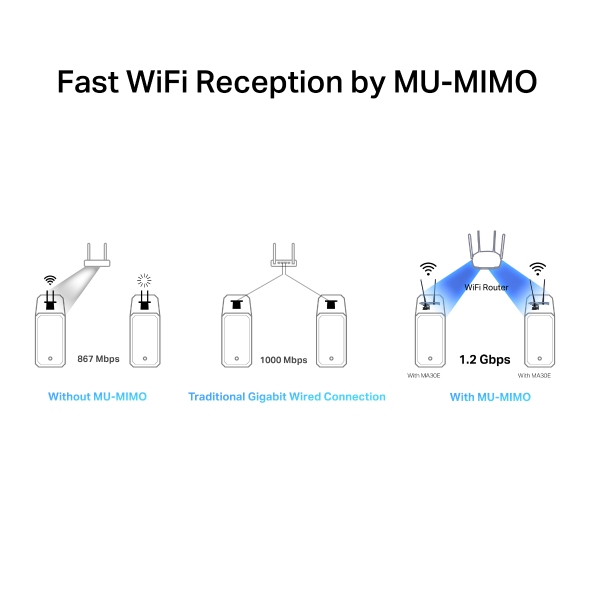

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion3
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety4
Backward Compatibility — Full support for 802.11ac/a/b/g/n standards
Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)
Please note: MA30E is not compatible with the low-profile bracket because of the fixed antennas.
| Category | Details |
|---|---|
| Wireless Standards | IEEE 802.11 a/n/ac 5 GHz IEEE 802.11 b/g/n 2.4 GHz |
| WiFi Speeds | 867 Mbps on 5 GHz 300 Mbps on 2.4 GHz |
| Reception Sensitivity | 5 GHz: – 11a 54Mbps: -77 dBm – 11ac VHT80 MCS0: -92dBm – 11ac VHT80 MCS9: -64dBm 2.4 GHz: – 11g 54Mbps: -76 dBm – 11n HT40 MCS7: -72dBm |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3-SAE |
| Hardware Dimensions | 8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm) |
| Antenna Type | 2× Fixed High-Performance Omni-Directional Antennas |

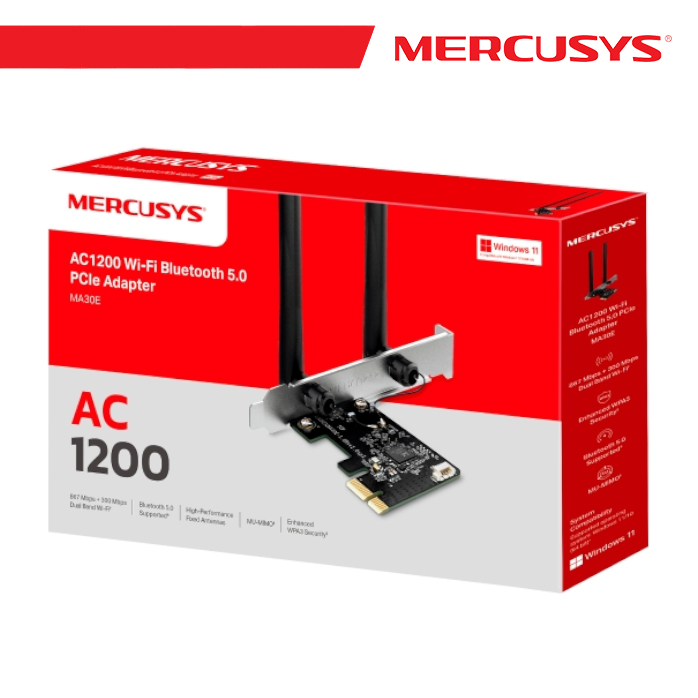

| Others | Package Contents: – AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E) – Bluetooth Header Cable – Quick Installation Guide – Resource CD |
| Environment | Operating Temperature: 0°C – 40°C (32°F – 104°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit) |
