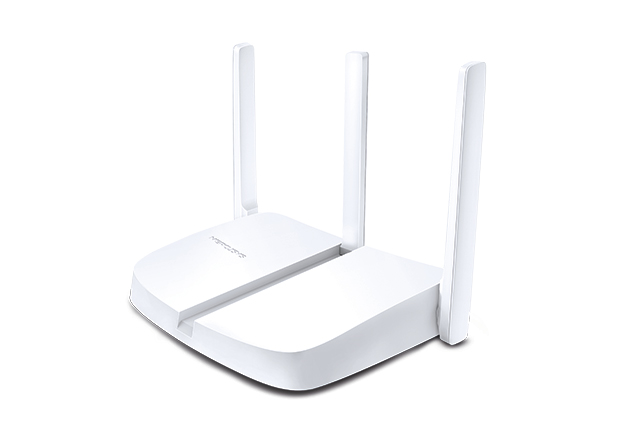

Router Mercusys Wireless 300Mbps 3 antenne da 5dbi 2.4GHz

MW305R
Router Wireless N 300Mbps

• Velocità wireless fino a 300Mbps, perfetto per streaming video HD, gaming online e download
• 3 antenne 5dBi per una copertura wireless stabile ed estesa
• Installazione semplice – guida web intuitiva per configurare il Router in pochi istanti





Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4 – 2.4835GHz

Signal Rate

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -87dBm@8% PER

6M: -90dBm@10% PER

1M: -98dBm@8% PER

Transmission Power

<20dBm

Wireless Security

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Wireless Functions

WDS bridge





Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Parental Control

Access control

Local management

Remote management

DHCP

Server

Port Forwarding

Virtual server, UPnP, DMZ

Dynamic DNS

DynDNSã€NO-IP

Firewall Security

IP and MAC address binding

Protocols

IPv4

Guest Network

2.4GHz guest network



Hardware

Dimensioni (W X D X H)

169 x 116 x 35 mm

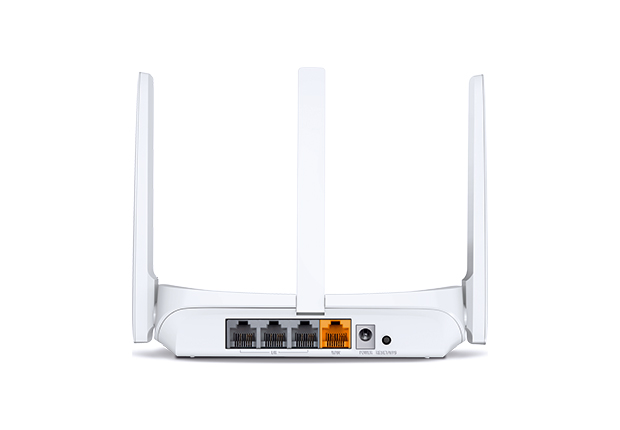

Interfaces

3 10/100Mbps LAN ports

1 10/100Mbps WAN port

Button

Reset/WPS button

External Power Supply

5VDC/0.6A

Tipologia di Antenna

3 x 5dBi fixed omni directional antennas





Other

Certifications

CE, ROHS

Package Contents

300Mbps Wireless N Router

MW305R

Power adapter

Quick installation guide
Ethernet cable



Environment

Operating temperature: 0â°C ~ 40â°C (32â°F ~ 104â°F)

Storage temperature: -40â°C ~ 70â°C (-40â°F ~ 158â°F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing
